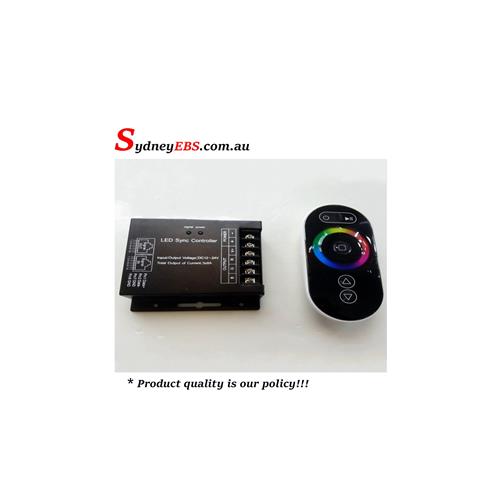

RGB LED Sync Controller With Touch Panel RF Remote Control.

RGB LED Sync Controller RF Remote Control Touch Panel DC12V-24V 24A adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Technical Parameters

• Working temperature: -20-60 ℃
• Supply voltage: DC12V~24V
• Output: 3 channels
• Connecting mode: Common Anode
• External dimension: L91 χ W88 χ H24 mm
• Packing size: L106 χ W106 χ H66 mm
• Net weight: 270g
• Gross weight: 320g
• Output gray: 256 levels （RGB each）
• Output current: <8A (each channel)
• Output power: 12V<288W,24V<576W
• Frequency of RF remote control: 433.9MHz
• Package Include:
• 1 Piece of  LED Sync Controller
• 1 Piece of Touch Panel RF Remote Control
